Loading Data into Specviz

By design, Specviz only supports data that can be parsed as Spectrum1D objects, as that allows the Python-level interface and parsing tools to be defined in specutils instead of being duplicated in Jdaviz. Spectrum1D objects are very flexible in their capabilities, however, and hence should address most astronomical spectrum use cases.

See also

Reading from a File

Specutils documentation on loading data as Spectrum1D objects.

There are two primary ways in which a user can load their data into the Specviz application: through the UI, or via the Python API (for most user cases this means inside a notebook). These are separately detailed below.

Importing data through the GUI

The first way that users can load their data into the Specviz application is by using the Import Data button in the application’s user interface.

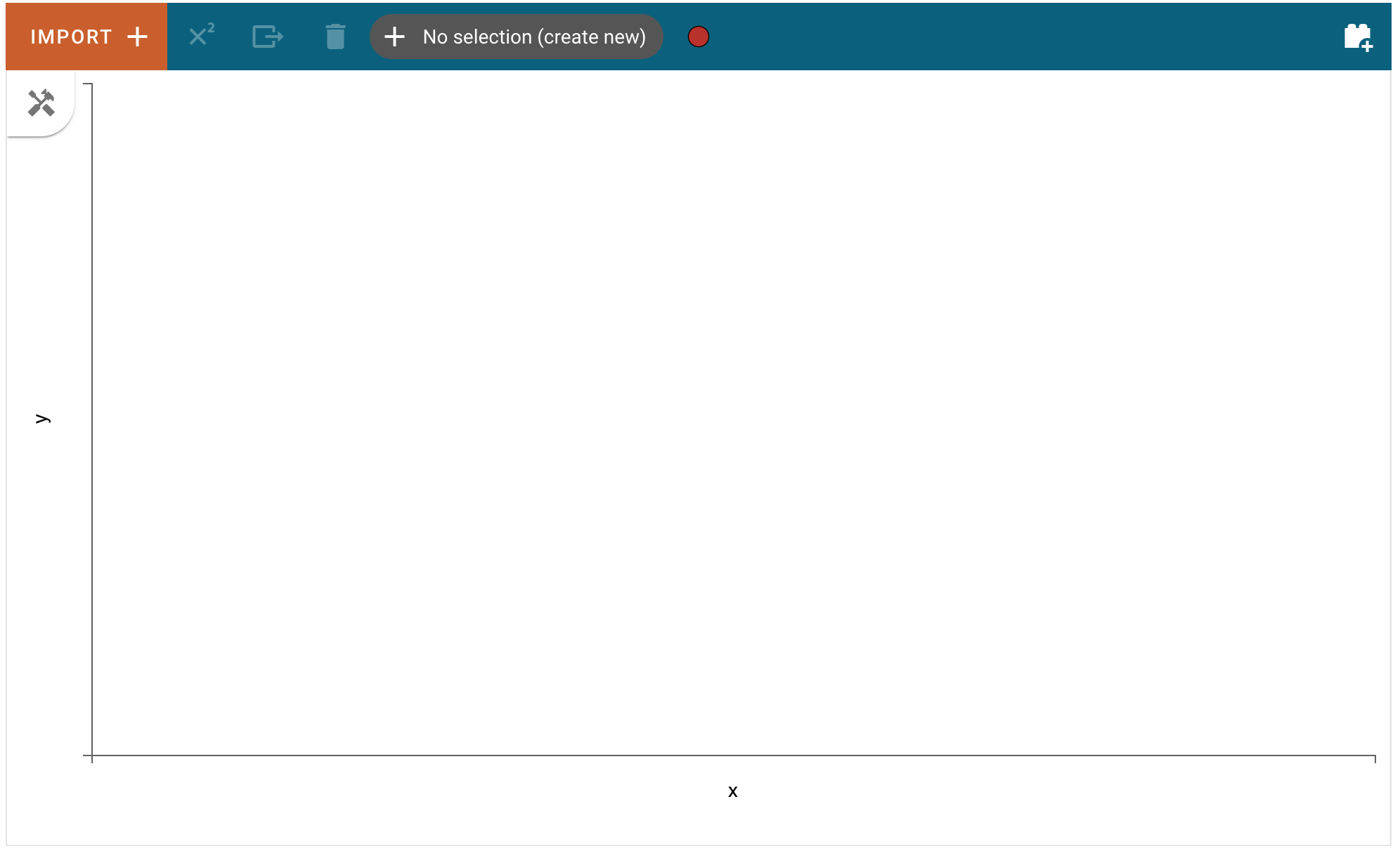

This process is fairly straightforward, users need only click on the Import Data button:

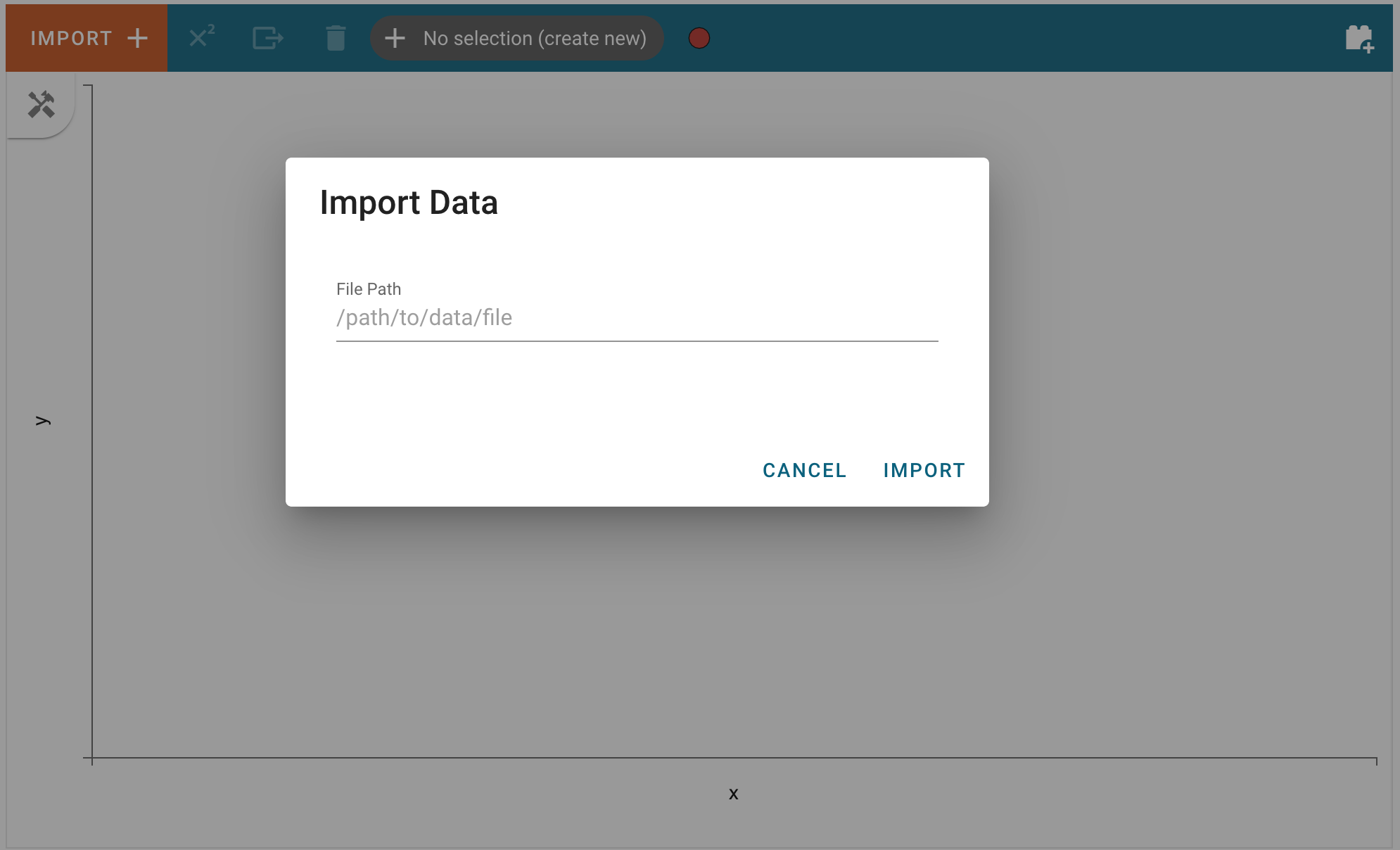

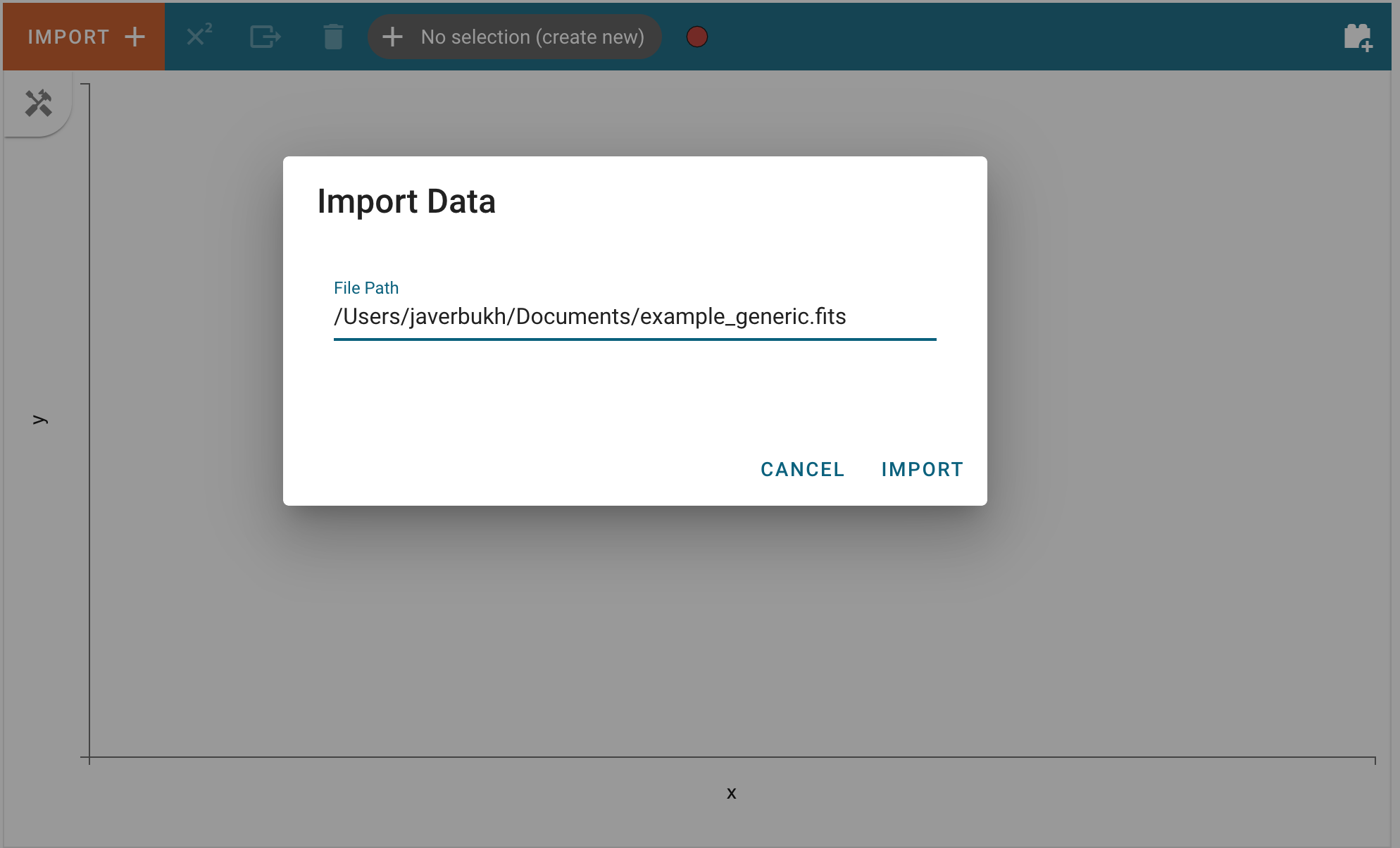

and choose a file that can be parsed as a Spectrum1D in the text field:

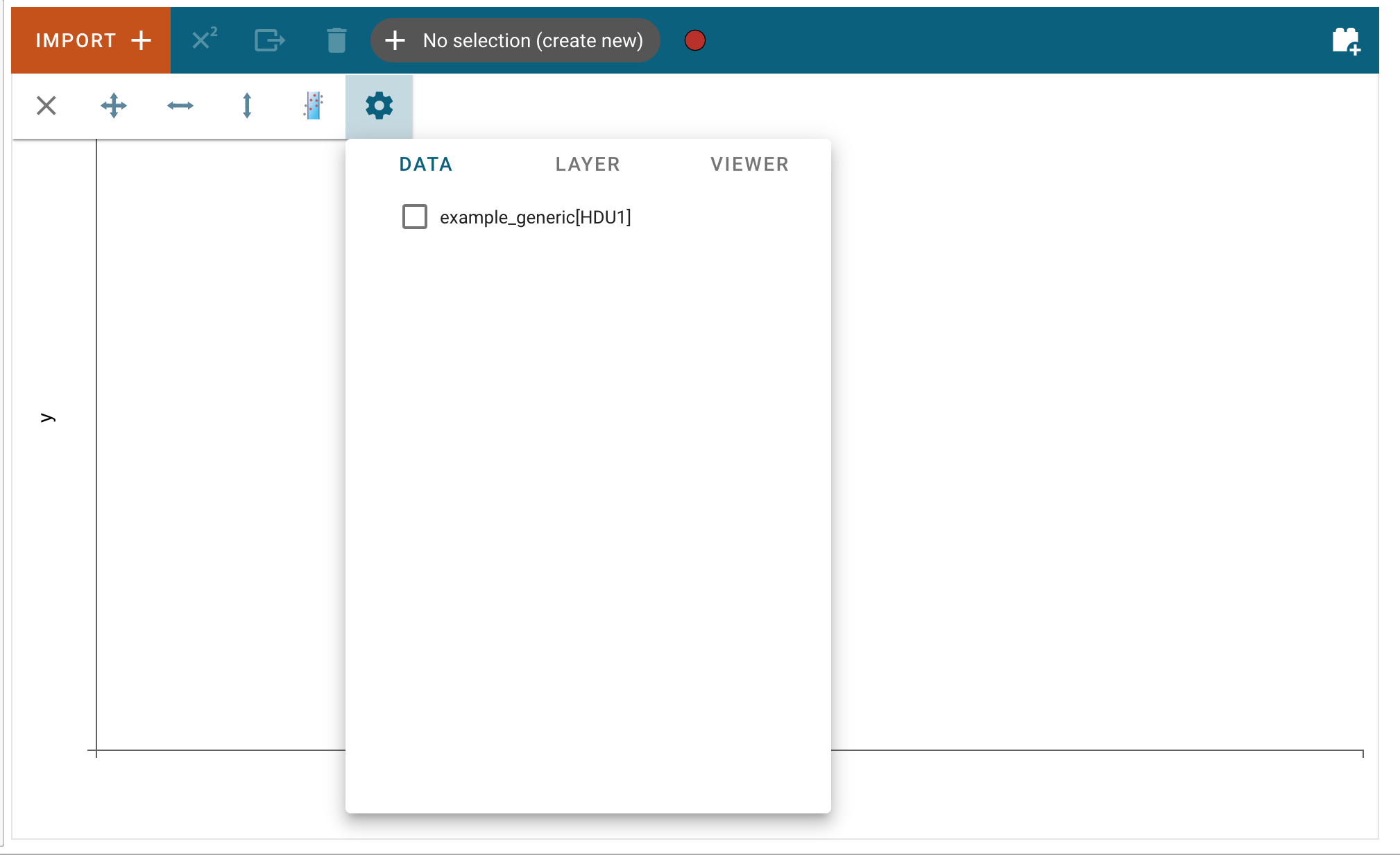

After clicking Import, the data file will be parsed and loaded into the application. A notification will appear to let users know if the data import was successful. Afterward, the new data set can be found in the Data tab of each viewer’s menu.

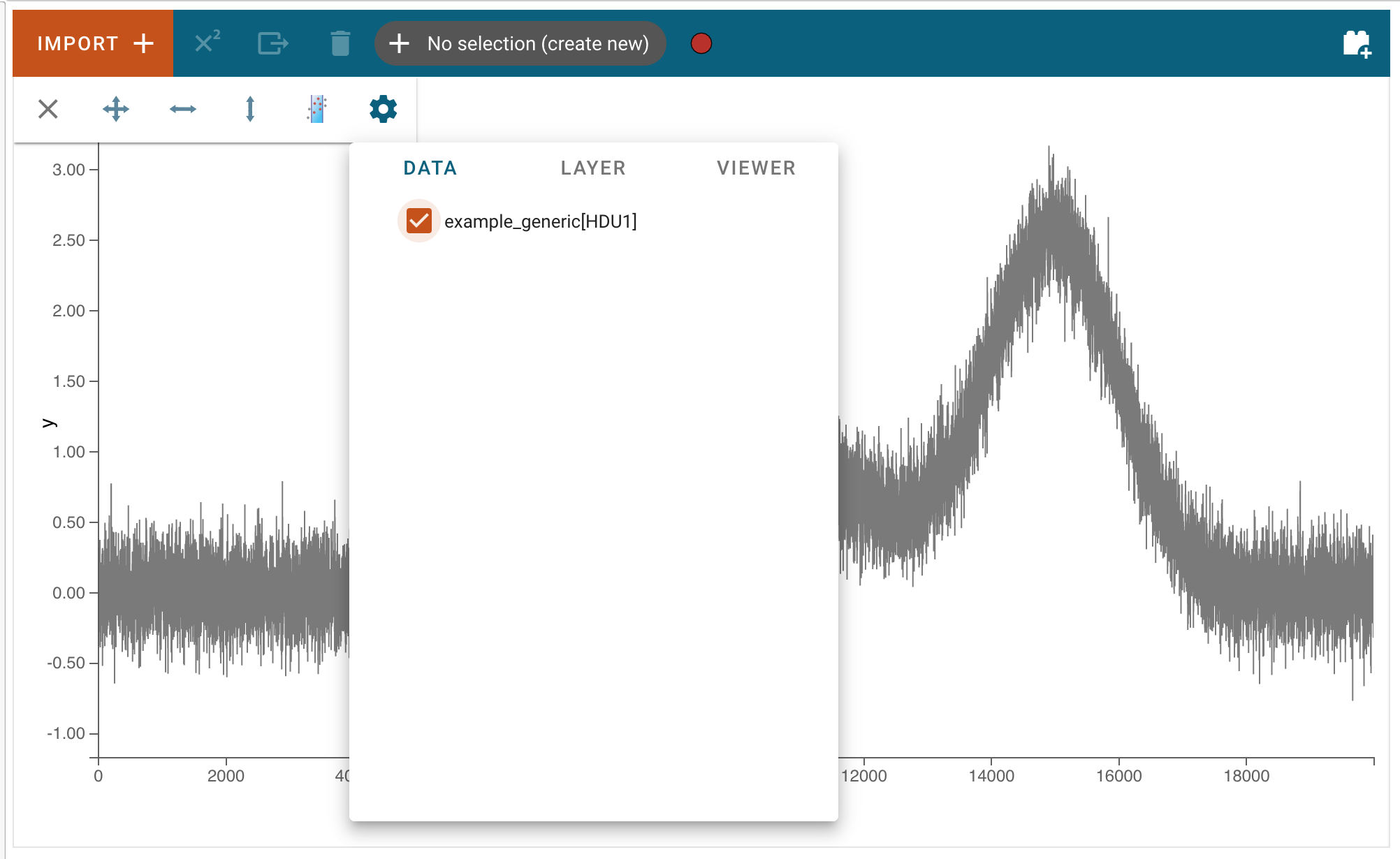

Here, users can select the loaded data set to be visualized in the viewer.

Loading data via the API

Alternatively, if users are working in a coding environment like a Jupyter notebook, they have access to the Specviz helper class API. Using this API, users can load data into the application through code. Below is an example of importing the Specviz helper class, creating a Spectrum1D object from a data file via the specutils.Spectrum1D.read method:

>>> from specutils import Spectrum1D
>>> spec1d = Spectrum1D.read("/path/to/data/file")
>>> specviz = Specviz()
>>> specviz.load_spectrum(spec1d)

This method works well for data files that specutils understands. However, if you are using your own data file or in-memory data, you can instead create a Spectrum1D object directly. In this example that is done using randomly generated data, and then that Spectrum1D object is loaded into the Specviz application:

>>> from jdaviz import Specviz
>>> import numpy as np
>>> import astropy.units as u
>>> from specutils import Spectrum1D
>>> flux = np.random.randn(200)*u.Jy
>>> wavelength = np.arange(5100, 5300)*u.AA
>>> spec1d = Spectrum1D(spectral_axis=wavelength, flux=flux)
>>> specviz = Specviz()
>>> specviz.load_spectrum(spec1d)

For more information about using the Specutils package, please see the Specutils documentation.
